Analog 0.13W ANEX Diesel Fuel Tank Level Sensor 2500mm Length

Name: Analog 013W ANEX Diesel Fuel Tank Level Sensor 2500mm Length
Brand: Jointech
Price: 1 USD

China Analog 0.13W ANEX Diesel Fuel Tank Level Sensor 2500mm Length wholesale

Brand Name : Jointech

Model Number : JT606X

Certification : CE

Place of Origin : Guangdong,China

MOQ : 1unit

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000 units per months

Delivery Time : 2-7days

Packaging Details : Carton/wooden box/Customized

Product Name : High Resolution digital fuel sensor analog fuel level measurement Diesel fuel tank level sensor

Accuracy : +/-1mm

Certificate : CE, ANEX

Length : 100mm~2500mm

Application : Truck, tank

Service : OEM, ODM

Output singal : Analog/digital

Feature : Capacitive, adjustable

Contact Now

High Resolution digital fuel sensor analog fuel level measurement Diesel fuel tank level sensor

JT606X capacitive oil level sensor is independently developed in combination with the world's top sensor technology and has a number of innovative patented technologies. JT606X is a capacitive type fuel level sensor, with advantage such as cuttable, flange installation with 1 hole, high resolution,
 anti-explosion certification, robust and durable.

 	 			index 			parameter
 			Acquisition Principle 			Capacitive
 			Operating Voltage 			4-70V
 			Power consumption 			0.13W / 5V, 0.19W / 12V, 0.38W / 24V
 			Precision 			Resolution <1mm, detection accuracy is less than 0.5%
 			Communication Interface 			RS-232, RS-485, CAN (customized)
 			Communication baud rate 			2400, 4800, 9600, 57600, 115200 or customized
 			output signal 			0-5V voltage signal, 4-20mA current signal
 			Measuring range length 			10CM-150CM
 			Protection class 			IP67
 			Housing material 			Aluminum alloy
 			Working temperature 			-40 ° C ~~ + 85 ° C
 			Storage temperature 			-40 ° C ~~ + 105 ° C
 			weight 			400G (50CM long)
 			size 			550mm, 750mm, 1000mm, customized
 			Features 			1.The resolution is less than 1mm, and the collection accuracy is less than 0.5%
 			2. Adjust the length on site to suit the height of the fuel tank
 			3. Wide voltage input 4-70V
 			4. Patented technology for easy installation of flanges
 			5. Multi-signal output: (RS485, RS232, voltage, resistance, current)
 			6.Support on-site adjustment and remote parameter configuration
 			7. Support replacement of original car oil level sensor



FUEL LEVEL SENSOR STANDARD ACCESSORIES

Probe : sealed, probe length from 10-150cm.
 Flange : patent design
 Connection cable: standard 5.5m. optional: 10m, 15m

FUEL LEVEL SENSOR CALIBRATION BOX

 FOR Easy full and empty calibration
 Built in battery
 screen to read fuel level in real time.
 set damping value

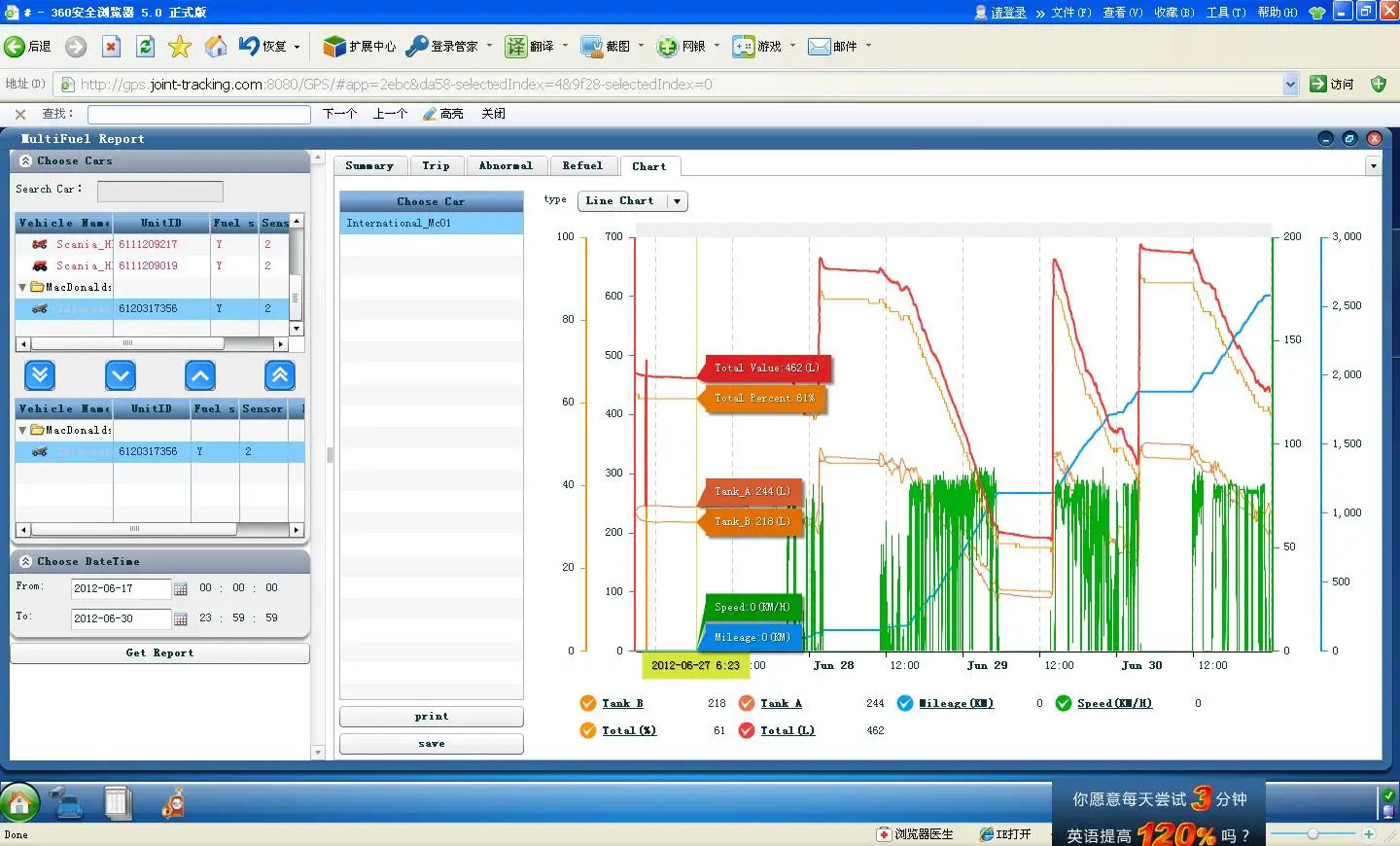

Read FUEL LEVEL by Mobile and PC,
Fuel curve
Fuel analysis report
Fuel change alarm

Catche me at andrea at jointcontrols dot com for more info.



FAQ:

Q: Do you have your own factory?

 A:Yes, we are manufacturer in China for over 15 years located in Guangdong, China

 Q: Why choose us?

 A:we have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
 in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
 assets monitoring field.

 Q: Do you have your own tracking platform?

 A:yes, we can provide not just web based tracking software, but also IOS/Android APPS

 Q: Do you provide customized hardware and software?

 A:Yes, we can provide not just customized hardware, but also software funcationalities.

 Q: What's your delivery time?

 A: For samples, 2-4 days, bulk order, 7-15 days generally
